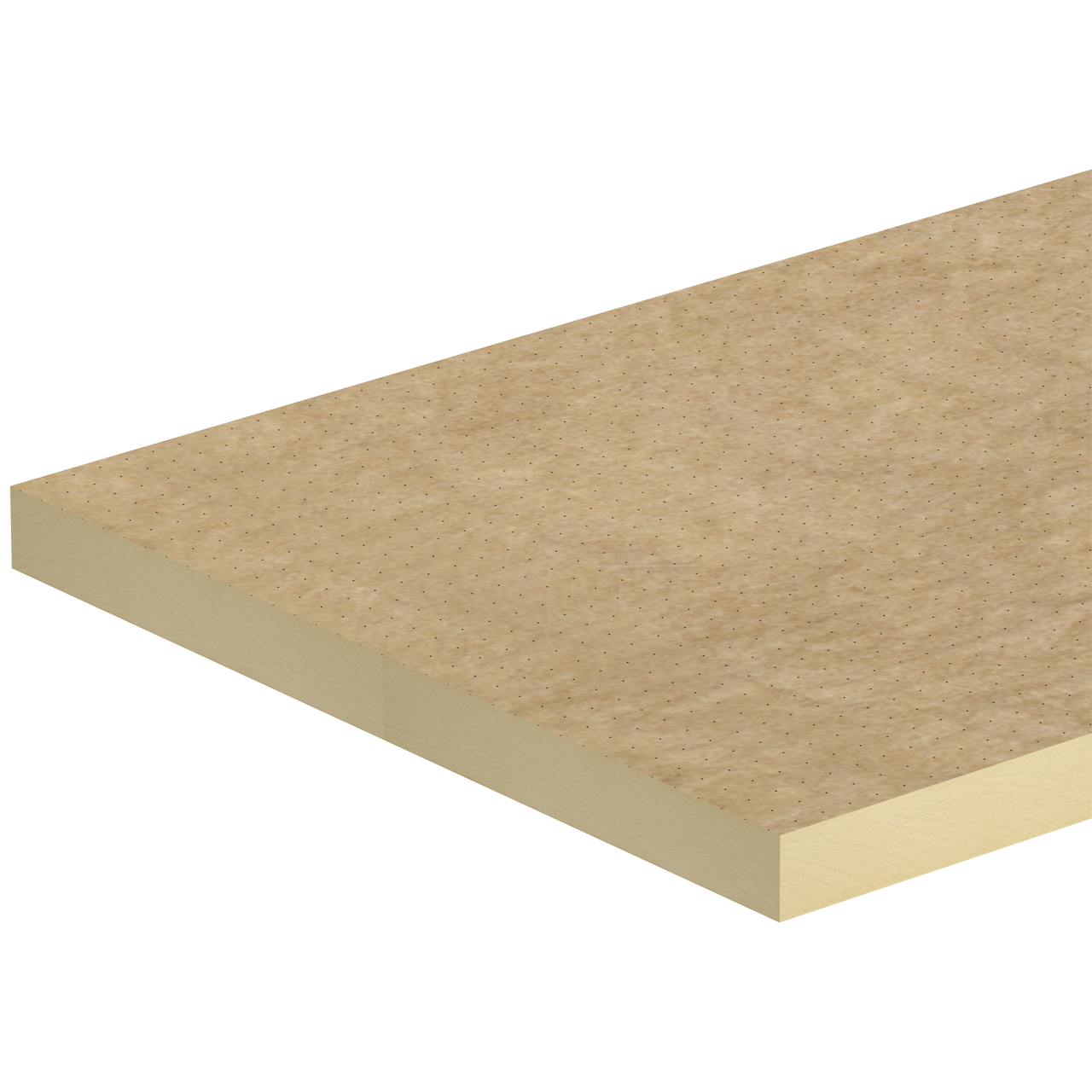

Kingspan Thermaroof TR27 Flat Roof Insulation Board - All Sizes
Couldn't load pickup availability
Kingspan Thermaroof TR27 1200mm x 1200mm Data Sheet
Kingspan Thermaroof TR27 Insulation board is a high-performance insulation with a fibre-free rigid thermoset polyisocyanurate (PIR) core.
With a thermal conductivities as low as 0.024 W/mK, it is used to insulate flat roofs waterproofed with fully adhered single-ply, partially bonded built-up felt, mastic asphalt and cold liquid applied waterproofing.
Thermaroof TR27 Insulation Board Installation:
This durable and fibre-free Kingspan Thermaroof TR27 Insulation Board is easy, simple and fast to install.
Product Highlights
- Amongst the more thermally efficient insulation products for flat roofs
- Fully compatible with single-ply non-bituminous membranes that are fully bonded with solvent-based adhesive systems
- Fully compatible with most bitumen based and mastic asphalt waterproofing systems
- Compatible with most green roof systems
- Available with FM Approval to FM 4470 - search 'Kingspan Therma' on the FM Approvals website for conditions of approval
- Also available as a tapered insulation system, to create the fall in the roof
- Certified to BES 6001 (Framework Standard for the Responsible Sourcing of Construction Products) ‘Very Good’
- Easy to handle and install
This urethane thermoset polyisocyanurate insulation board is rigid, robust and fibre-free. On both the sides, it is featured with coated glass tissue autohesively bonded to the fibre-free insulation core. This durable product is perfect for the flat roofs waterproofed with partially bonded built-up felt, fully adhered single-ply, mastic asphalt and cold liquid applied waterproofing.
Pack Sizes:
| Thickness | Boards per Pack | Pack Coverage |
| 25mm | 12 | 8.64m2 |
| 50mm | 6 | 8.64m2 |
| 60mm | 5 | 7.20m2 |
| 70mm | 6 | 8.64m2 |
| 80mm | 4 | 5.76m2 |
| 90mm | 3 | 4.32m2 |
| 100mm | 4 | 5.76m2 |
| 120mm | 4 | 5.76m2 |
| 130mm | 3 | 4.32m2 |
| 140mm | 2 | 2.88m2 |
| 150mm | 2 | 2.88m2 |
| 160mm | 2 | 2.88m2 |
*Sold as packs. We do not split packs.
Prices shown are as packs.
*Sizes - 70mm, 90mm and 160mm available on request.
