Tekwarm PIR Insulated Plasterboard 2400mm x 1200mm

In stock
SKU: TWPIR29
£1,129.14
£33.21 item
Thickness
Usually sold by full pallet - Exceptions possible.

Tekwarm PIR Insulated Plasterboard 2400mm x 1200mm  Data Sheet

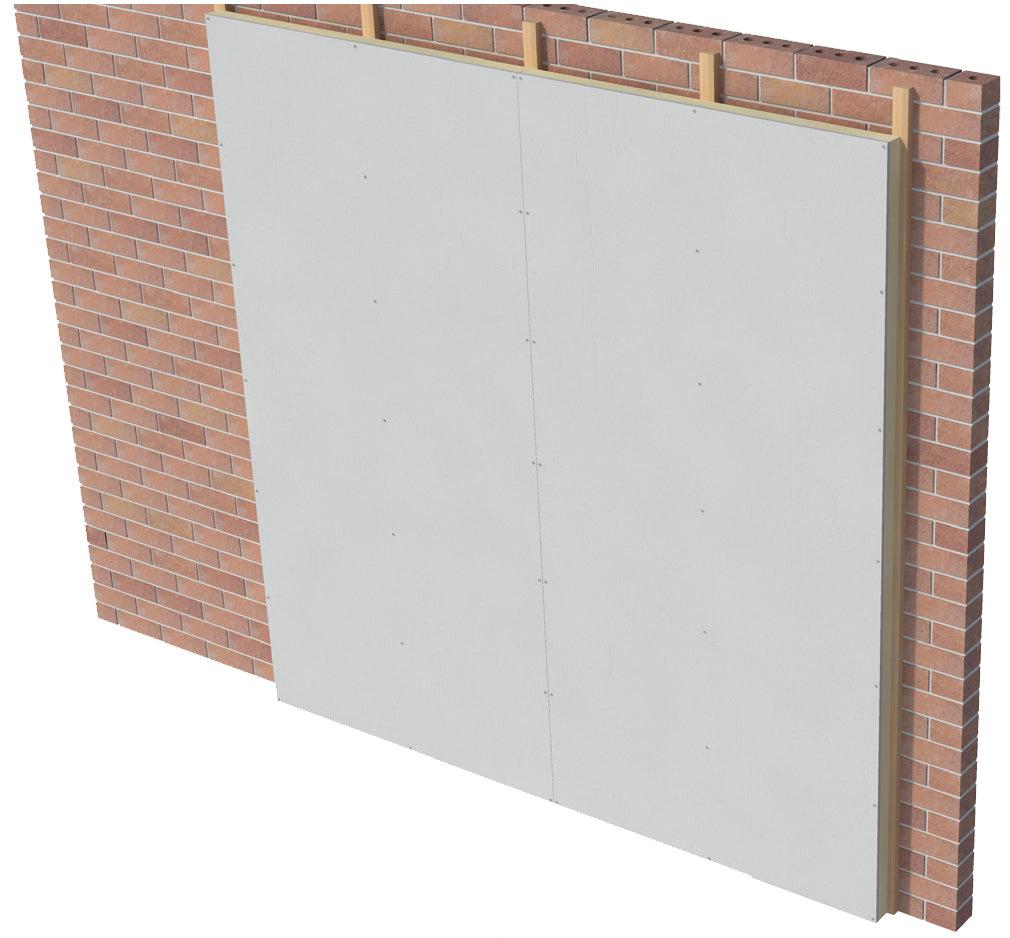

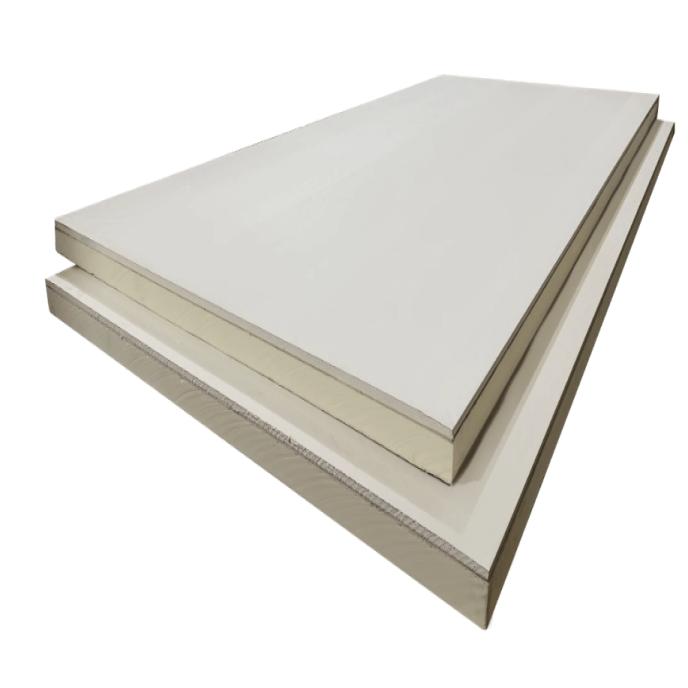

Tekwarm PIR Insulated Plasterboard is a premium 2-in-1 insulated plasterboard that combines 12.5mm tapered edge plasterboard with high-performance PIR insulation, allowing you to insulate and dry line walls or roofs in a single installation. With a thermal conductivity of 0.022 W/mK, it delivers excellent thermal performance while reducing installation time and labour costs.

Each board measures 2400mm x 1200mm and covers 2.88m². Tekwarm PIR Laminate Boards are suitable for internal wall lining and roof applications and can be installed using adhesive and mechanical fixings in accordance with installation guidelines. Available in a wide range of insulation thicknesses to suit your project's thermal requirements.

Key Features

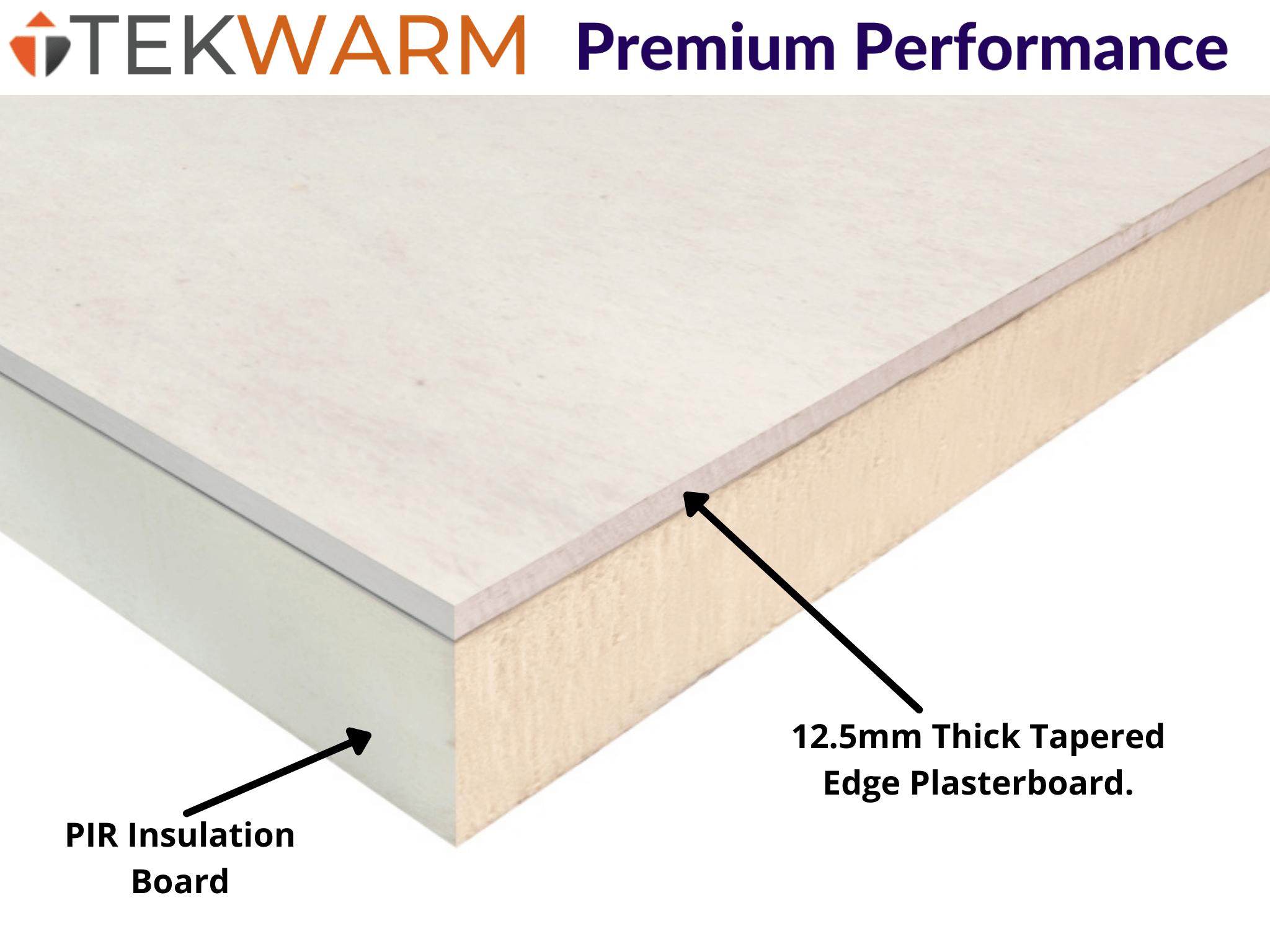

  • High-performance PIR insulation bonded to 12.5mm tapered edge plasterboard
  • Thermal conductivity: 0.022 W/mK
  • Board size: 2400mm × 1200mm
  • Coverage: 2.88m² per board
  • Suitable for internal walls and pitched roofs
  • Time-saving 2-in-1 insulation and drylining solution
  • Available in 32.5mm, 37.5mm, 42.5mm, 52.5mm, 62.5mm, 72.5mm, 82.5mm, 92.5mm, 102.5mm, 112.5mm insulation thicknesses.

    Insulation Thickness (mm) R Value (m²K/W) Approx Weight (kg/board)

    Board per pattet (no)

    		 Nominal Overall Thickness (mm)
    20 1.04 23.28 34 29.5
    20 1.04 24.28 34 32.5
    25 1.20 25.78 28 37.5
    30 1.44 26.25 26 42.5
    40 1.90 27.08 20 52.5
    50 2.34 27.94 18 62.5
    60 2.79 28.80 14 72.5
    70 3.25 30.10 12 82.5
    80 3.70 30.53 12 92.5
    90 4.16 31.50 11 102.5
    100 4.61 32.35 10 112.5
